The Koden MDC-5004BB set consists of MRM-110, MRO-110 and RB806
Open antenna of 3, 4 or 6 ft with 15 meters of cable.
Includes power cable and mounting material.
Screen is not included.
Functions
Function improvement
Clear image with fast sampling at a short distance.
Automatic GAIN with easy operation.
Improved visibility of the echoes through automatic STC and CFAR.
Simple and easy control via remote traceball via USB.
TT(ARPA) function is standard
Built-in TT(ARPA) tracks up to 50 targets.
Selectable automatic acquisition or manual acquisition.
Standard AIS interface
Built-in AIS interface for displaying up to 500 targets.
Map overlay
C-Map chart (NT or MAX)* can be overlaid on the radar screen to provide clear radar images of coastlines, buoys and other features. C-Map NT MAX "World Wide" background map is built in as standard.
*Owner supplied. Basic map information only. Additional features of C-Map such as photo indication are not available.

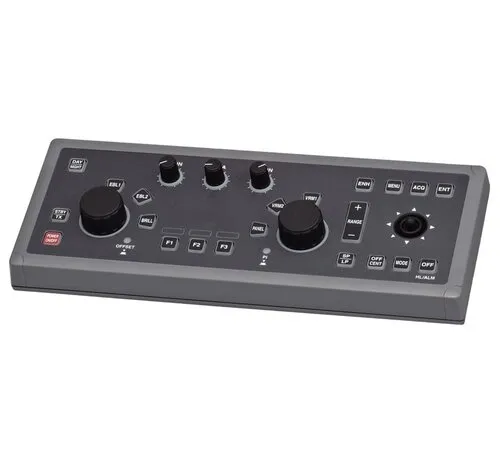

Keyboard control unit
The radar has a separate control unit, giving users a choice of installation locations.
Black box
MDC-5000 series black box radars can be connected to any XGA type display (owner supplied).
| MDC-5004BB | 4 kW / 48 nm / 3 or 4 or 6 ft open |
| Dimensions | 320 (H) x 320 (W) x 133 (D) mm (Processor unit) 141 (H) x 385 (W) x 57 (D) mm (Operation unit) |
| Weight | 5.1 kg (Processor unit) 2.0 kg (Operation unit) |
| Power supply | 21.6 to 41.6 VDC |
