NSR NGR-3000 GPS.
The NGR-3000 GPS Navigator is designed for marine use in full compliance with international regulations, IMO MSC 112 (73), IEC 61108-1. This GPS comes fully complete including the GPS antenna.
The NSR NGR-3000 GPS Navigator is an ideal position sensor for radar, AIS, ECDIS, INS, autopilot, echo sounder and other navigation and communication equipment. The completely redesigned GPS 7-inch touchscreen color display and antenna unit provide improved stability and precision in determining position.
A basic NGR-3000 consists of an antenna and display unit with a 20-meter antenna cable. The display unit is a 7-inch color LCD touch screen that provides optimal viewing 24 hours a day. To improve position accuracy, DGPS augmentation systems are available. Dual configuration, with a second system, provides backup and/or remote operation to ensure system availability.
This new GPS navigator meets the specific requirements for alerts and interconnection with Bridge Alert Management (BAM) in IMO MSC.302 (87).
Specifications NGR-3000 GPS.
Ideal position sensor for Radar, AIS, ECDIS, INS, autopilot, echo sounder and other navigation and communication equipment.
Full compliance with IMO MSC. 112 (73) and IEC 61108-1: performance and test standards for GPS
receiver
Storage for up to 999 waypoints and 30 routes
Optional DGPS antenna
Position is updated every second, allowing tracking of own vessel position

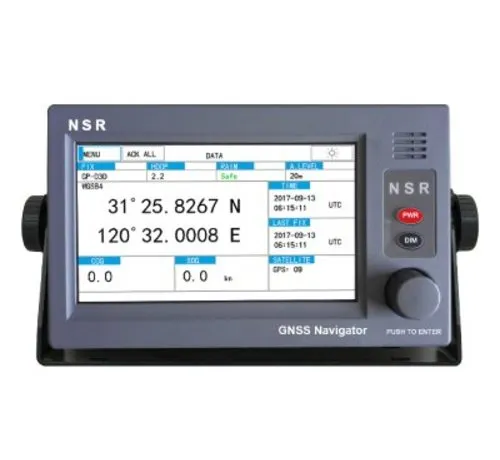

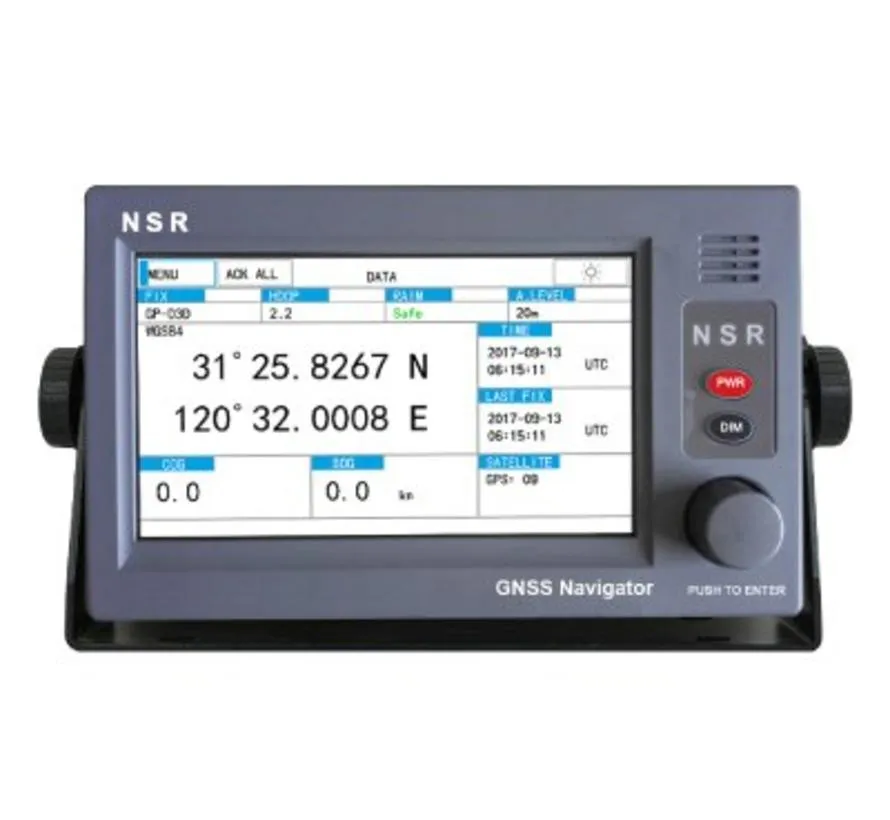

7” color display, touchscreen operation
Wheelmark / MED approved
The NSR NGR-3000 GPS comes with:
7 inch display
GPS antenna
20 meter cable for GPS
Manual
