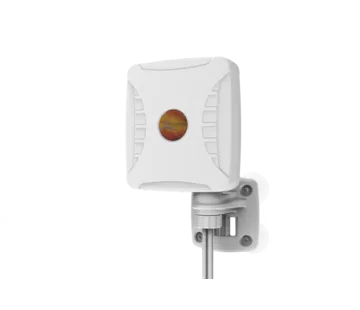

The Poynting XPOL 24 X-polarized, unidirectional 4x4 MIMO 5G/LTE antenna
Operating with the frequencies 617 - 960 MHz & 1710 - 4200 MHz, 11dBi; 4x4 MIMO.
An exceptional antenna with super performance of up to 11dBi gain.
Search points;
Exceptionally powerful antenna over the main 5G/LTE bands
New advanced metamaterial technology for high performance
Broadband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
Four cross-polarized antennas in one housing
Weather, dust and vandalism resistant housing with IP65 rain protection
Specifications;
Industry (application): Commercial and industrial antennas, Agricultural and agricultural antennas, Urban and rural mobile antennas
Technology: Mobile (LTE/2G/3G/4G/CBRS/5G)
Frequency band: 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz , 3400-3800MHz, 3800-4200MHz
Frequency range: 617 - 4200 MHz
Amplified: 11dBi
5G bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality: Unidirectional
LTE/4G bands: B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106
Mounting Type: Pole Mount, Wall Mount
Wi-Fi standard: Wi-Fi 3 (802.11g)
Connectors: SMA (m)
MIMO: 4×4
polarization: X-polarized
Environment: IP65
LTE ports: 4
This product includes 5 meters of cable.
