Raymarine Stng Spur cable for the connection between backbone and SeaTalkng instruments, thus providing power to the instruments. Various cable lengths are available, all with molded connectors, ensuring solid and reliable connections. Spur cables connect individual instruments to the SeaTalkng backbone.

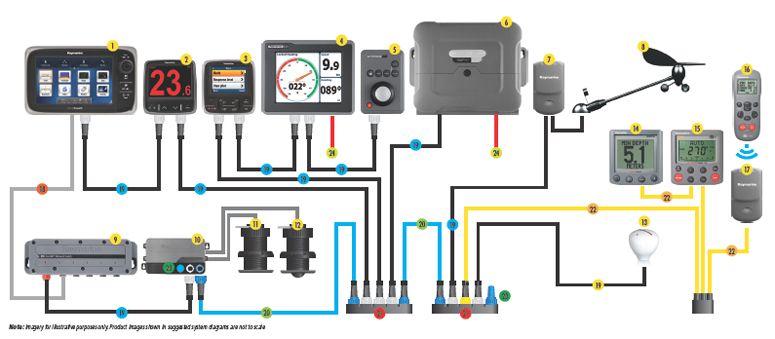

Basic Sea Talking System:
1. New e Series 2. i70 Instrument 3. p70/p70R Autopilot 4. ST70 Plus Instrument 5. ST70 Plus Autopilot Keypad 6. SPX Course Computer 7. Pod 8. Wind Transducer 9.
Network Switch 10. iTC-5 11. Speed Transducer 12. Depth Transducer 13. RS130 GPS Sensor 14. ST60+ Instrument 15. ST6002 Autopilot 16. SmartController 17. Pod 18.
RayNet Cable 19. SeaTalkng Spur 20. SeaTalkng Backbone 21. 5-Way SeaTalkng Connector 22. SeaTalk 23. Terminator 24. Power Supply
Color-coded cables
The cables and connectors are easily recognizable by their color and have a quick release (insert, turn the ring a quarter turn) for a waterproof (IPX6) connection.
Backbone cables, connections and terminators are blue in color.
Spur cables and connections are white.
SeaTalk to SeaTalk converter cables and connectors are yellow.
SeaTalk power cables are red.
