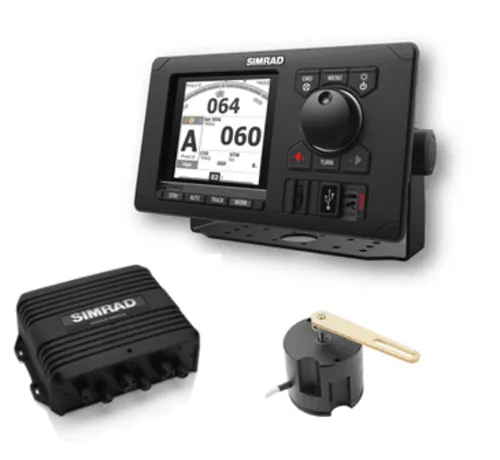

Simrad AP70 MK2 Autopilot solenoid pack containing an AP70 MK2 controller and AC80A computer and RF45X rudder feedback. The AP70 Mk2 replaces the aging AP70 and AP80 as IMO / SOLAS autopilot controller. The Simrad AP70 Mk2 is a dedicated autopilot controller for professional mariners on commercial vessels. AP70 Mk2 includes all the features of AP70 and AP80 and is compatible with the same range of autopilot computers, remote controls and interface to third-party navigation equipment as its predecessors.
Thruster Integration & Rudder Feedback Support. The AP70 Mk2 allows simultaneous autopilot control of up to 6 rudders and thrusters by adding optional AD80 or SD80 interface modules. The strusters can be set to automatically switch below a user-defined speed threshold and are configured separately for normal and working modes. The AP70 Mk2 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels.
Specifications Simrad AP70 MK2 Autopilot solenoid pack:
Boat type: Power (displacement, outboard and planing). From 30 ft and up
Steering system types: Hydraulic; Reversible pump/Solenoids: Mechanical; Rotary drive/Linear drive:Max 6 rudder/thruster drives
Inter-unit connection: CAN bus/NMEA 2000
System ON/OFF: From control units
Supply voltage: 12/24 V DC +30 -10%.
Power consumption: Dependent on system configuration (See spec for individual units)
EMC protection: IEC 60945: 2002-08
Performance: IMO A.342(IX) & A.822(19), ISO 11674 & 16329
Rate of turn: Within +-10% of preset value or 3°/min. Ref. ISO 11674: 4.3.7
Heading indication error: <0.5°. Ref. ISO 11674: 4.3.5
Heading stability: Within +-1°. Ref. ISO 11674: 4.3.13
Rudder/thruster Drive Reversible pump, solenoid on/off, proportional valve, analog
Serial data input/output ports: AC70: 1, AC80, AC85, SI80: 4
Heading sensors: Gyrocompass, Fluxgate/Rate compass, Magnetic compass, GPS compass (NMEA)
Course selection: Rotary course knob and buttons
Alerts: Audible and visual, external optional (AC70)
Steering modes: Standby, Non-follow-up, Follow-up, Auto, NoDrift, Nav
Special turn modes: U-Turn and S-Turn
