NVR-9000 VDR (Voyage Data Recorder) is designed to comply with the latest IMO rules of MSC.494 (104), IMO MSC.302 (87), IEC 61996-1, IEC 62923-1, IEC 62923-2.
- NSR's own FFC and FPC adopted.
- Real monitoring software available for easy check.
- Flexible configuration for either VDR or SVDR.
- Linux O/S used in firmware of VDR system.
- Large size color LCD with touch screen operation.
- Data interface to BAM System.
- Store data for min 48 hours both in Float-free Capsule (FFC) and Fixed Protective Capsule (FPC).
- Store data for min 30days/720 hours in Data Acquisition Unit.
- Record image of two radars and two ECDIS.
- Three separate channels for audio input:
One for up to 4 microphones
One for up to 4 microphones
One for 2 VHF audio
- As standard configuration, below ports provided:
Serial port x 24 ch (8ch at DAU and 16 ch at DEU)
Digital port x 64 ch (DEU)
Analog port x 8 ch (DEU)
- PC software and Phone APP are available for playback and realtime monitoring.
- CCS type approval.
- DNV type approval.
- RS type approval.
- VR type approval.

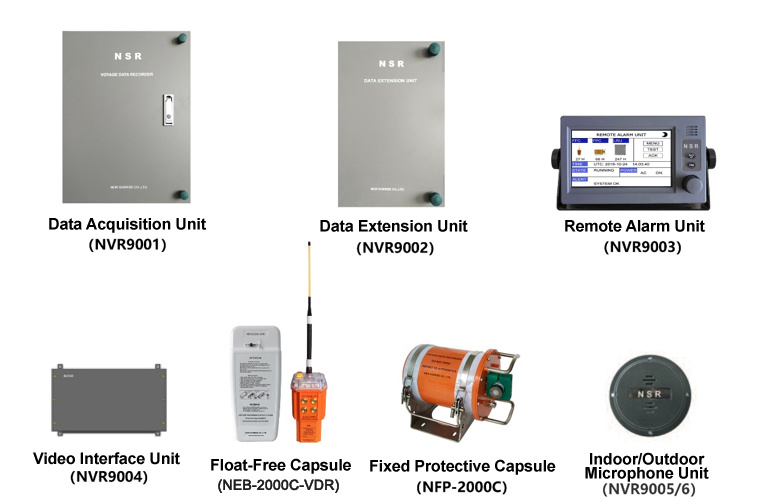

Inhoud pakket NSR NVR-9000 VDR (Voyage Data Recorder)
- 1 * NVR9001 Data Acquisition Unit (DAU）W/ LRU (512G)
- 1 * NVR9002 Data Extension Unit (DEU)
- 1 * NVR9003 Remote Alarm Unit (RAU)
- 4 * NVR9005 Indoor Microphone Unit（IMU）
- 2 * NVR9006 Outdoor Microphone Unit（OMU）
- 1 * NVR9004-2 Video Interface Unit（VIU）(2 CHANNELS)
- 1 * NFP-2000C Fixed Protective Capsule（FPC）w/ beacon
- 1 * NEB-2000C-VDR Float-Free Capsule（FFC）
- 2 * NEB205 Junction Box
- 2 * Power/LAN cable 30m
- 1 * Accessories
